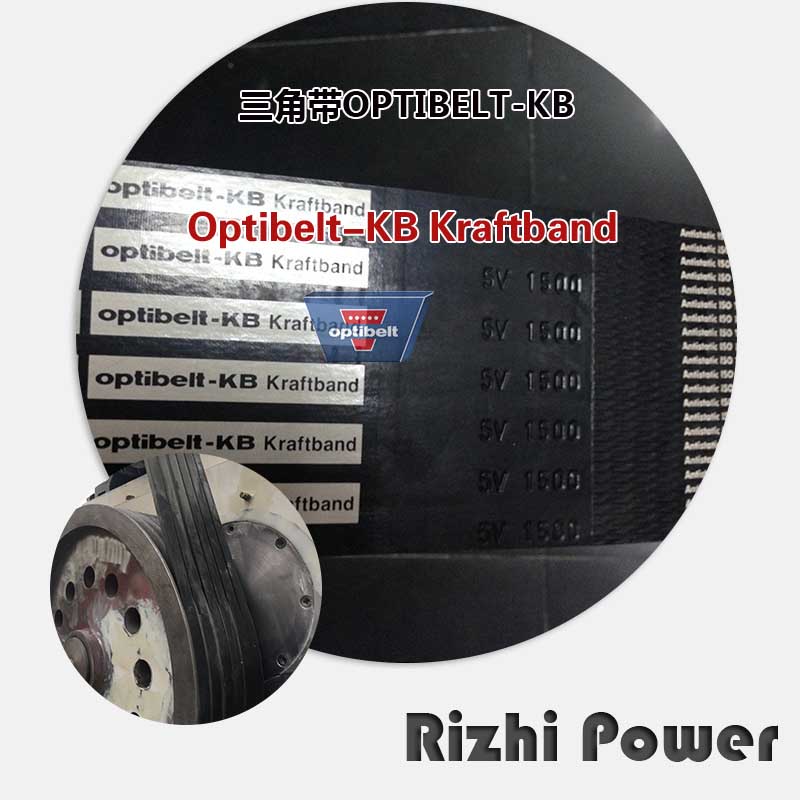

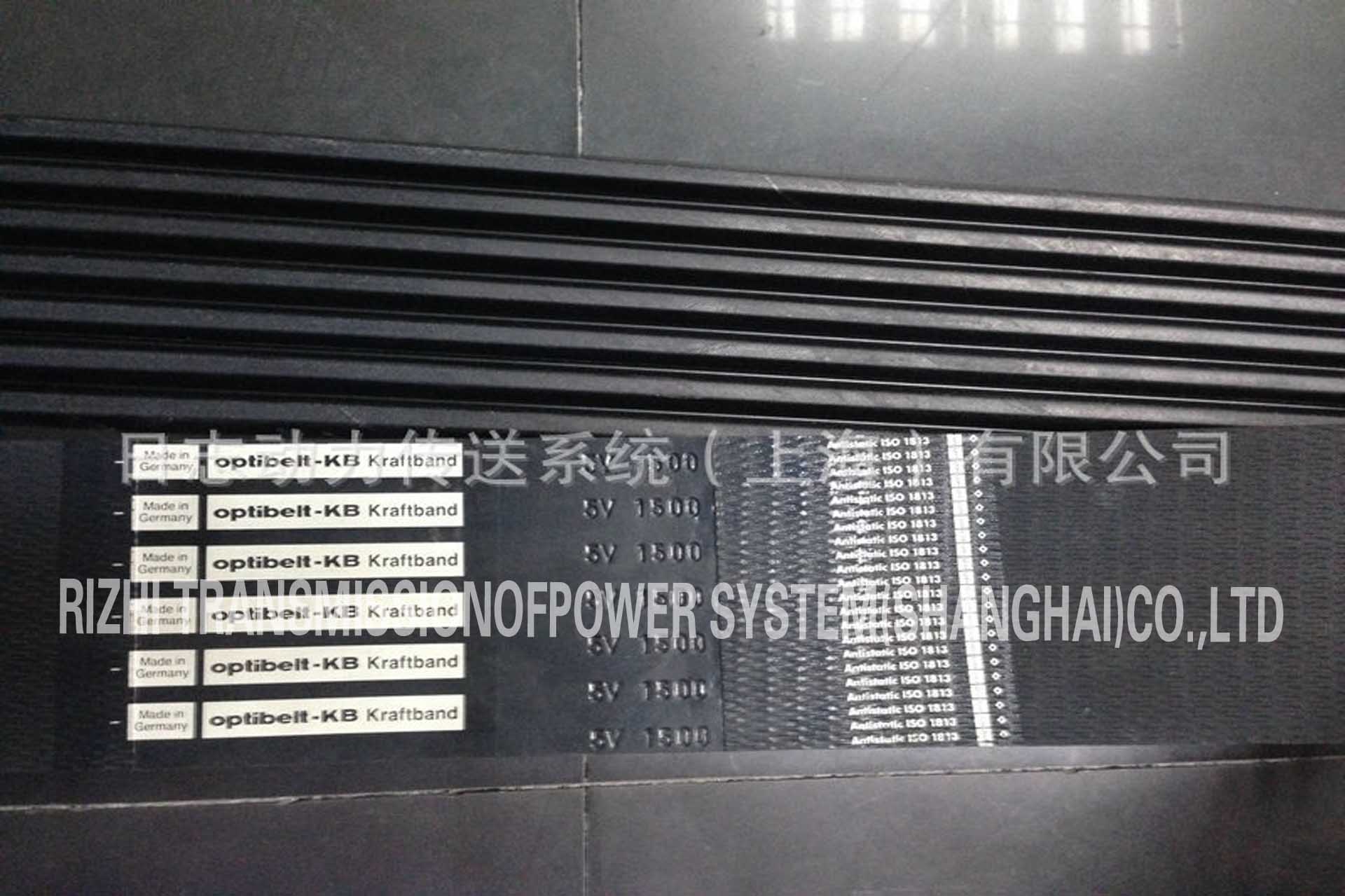

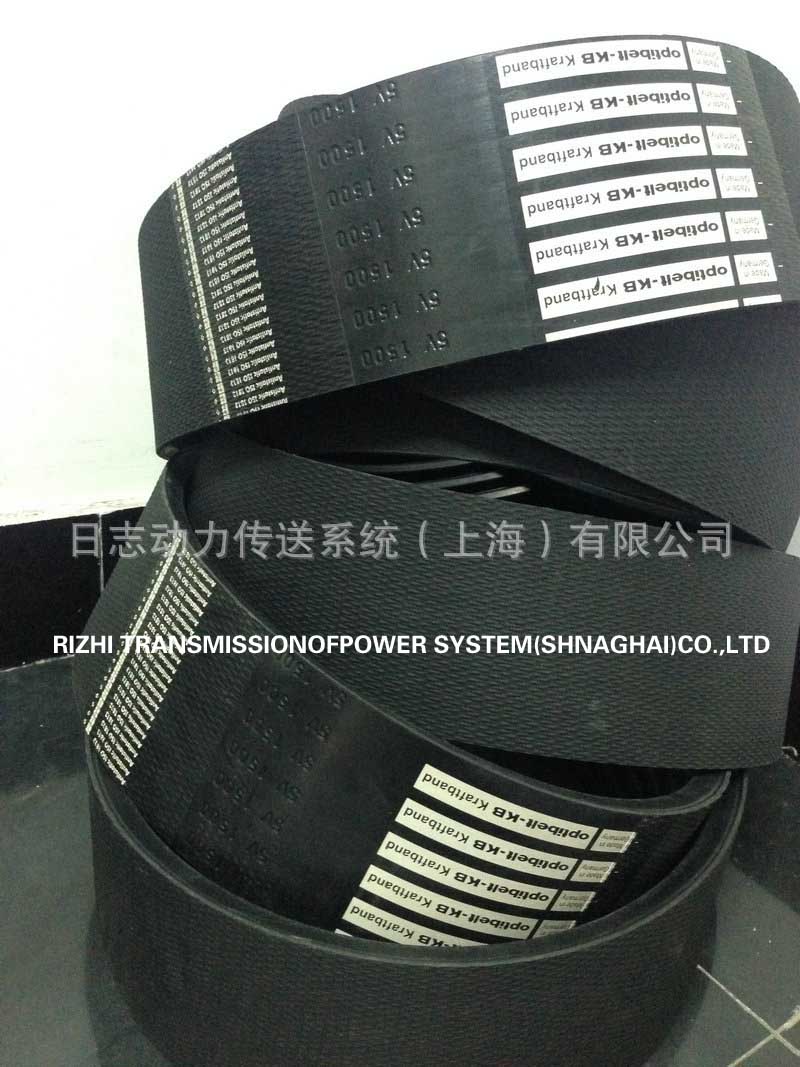

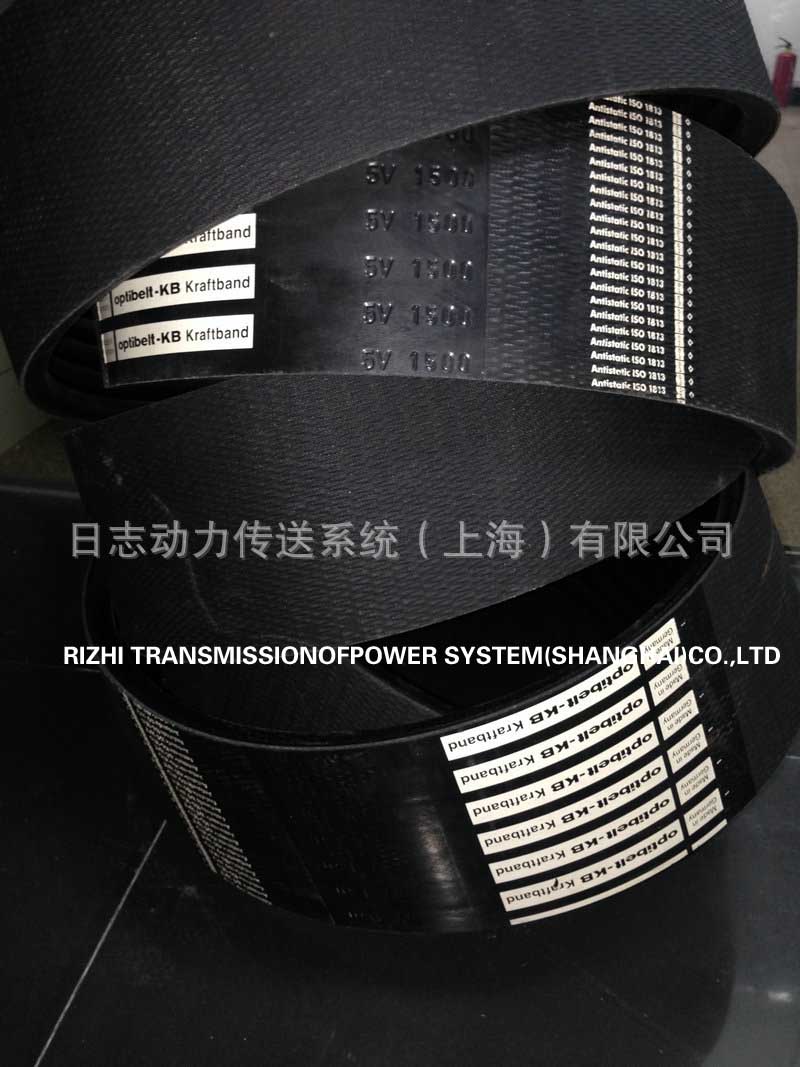

Optibelt-KB Fraftband
Product characteristics
Optibelt KB Kraftbands are characterised by the following characteristics:
1. High level of uniform power transmission
2. Favourable running behavior with regards to vibrations
3. Excellent flexibility
4. High centre distances with small pulley datum diameters
5. V-flat drives
6. Vertical drives
7. Clutched drives and drives for conveying application
Example order
The drive is to be equipped with a 5V 1600/15J4064 kraftband with 18 ribs
Kraftbands: Assembly combination with 5/4/4/5 ribs
The order is as follows:
A KB set, consisting of:
2 units of 4-5V 1600/15J 4064 Optibelt KB kraftbands and
2 units of 5-5V 1600/15J 4064 Optibelt KB kraftbands
4 or 5= Quantity of ribs
5V/15J=section
1600=belt number of 160 inch belt length
4064=external length in mm
